Project Description

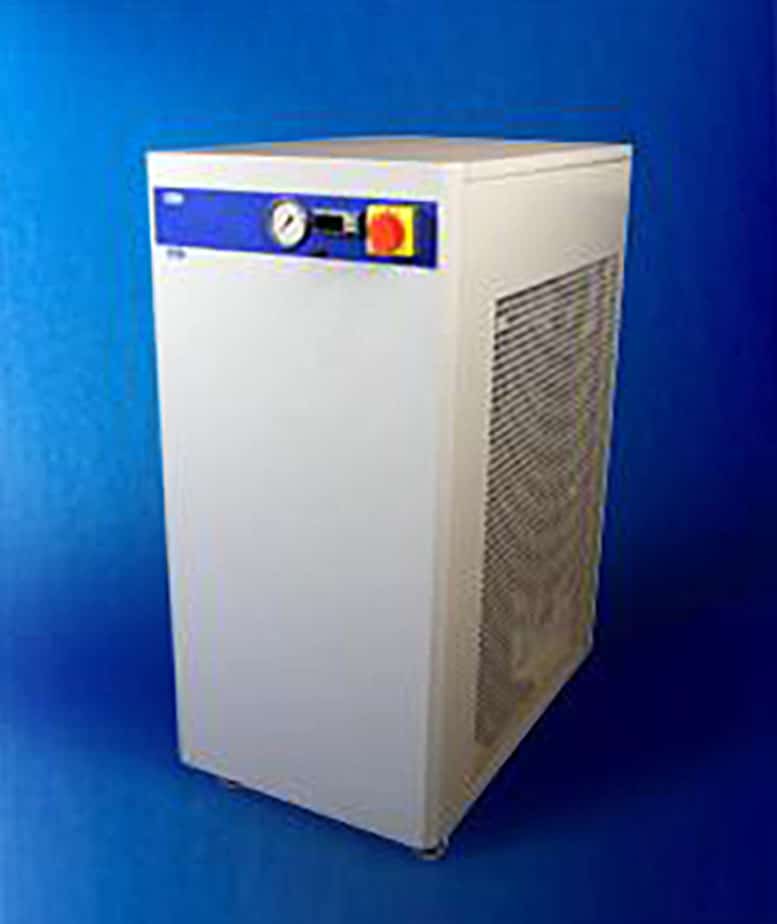

A Chiller offering 14.0kW of cooling in a versatile package. A full range of options and voltage variants are available.

Exceptionally high 14.0kW Cooling Capacity (@17°C set point).

Compact design offering maximum cooling capacity in the smallest space .

Versatile – many standard and non standard options.

Totally Reliable Workhorse.

Key Aspects:

  • Dimensions L x W x H (Air Cooled): 775 x 510 x 1130 mm
    Dimensions L x W x H (Water Cooled): 775 x 510 x 850 mm
  • Cooling capacity (water @ 17°C): 14000 watts
  • Microprocessor-based temperature controller: 3 term PID digital
  • Temperature adjustable: 0.1°C increments
  • Temperature stability: +/- 0.1 °C
  • Temperature range: +4° to +35°C
  • Extended temperature range – Optional: -20° to +70°C
  • Digital temperature display: Standard
  • Temperature alarm – Standard off-set +/- 10°C: Adjustable High / Low
  • Low fluid level alarm: Standard – Visual with pump interlock
  • Auto diagnostic functions: Controller and sensor
  • System volume: 10 litres
  • Pressure control system Standard fitment internal – user adjustable between 20 and 150psi
  • Compatible fluids: Hexid fluids / water / propylene glycol
  • Fluid connections: BSP Threaded Male 3/4″
  • Compressor over – load protection: Standard
  • Emergency Off (EMO): Via main circuit breaker (MCB)
  • Tool-less access: No
  • Noise level: 85 dB(A) @ 1 metre
  • Weight (approximated -Varies with options): 135kg
  • Wheels for mobility: Standard (2 locking)
