Project Description

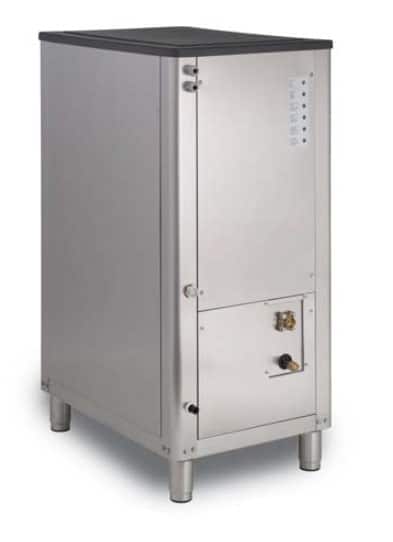

Scotsman flake ice maker, ice production unit only (requires external condensing unit), stainless steel finish.

Key Aspects:

  • Modular Superflake ice machine, production up to 2500 kg in 24 hours
  • Split unit, supplied with evaporator only, needs to be connected to remote condensing unit or central cooling system (low temperature)
  • Stainless steel auger and freezing cylinder (evaporator)
  • Equipped with an electromechanical control board
  • Ice breaker made in specially strengthened alloy, allowing for greater extrusion pressure to deliver a dryer quality of ice (85% dry).
  • Long-lasting stainless steel ball-bearings
  • Double protection (electronic rotation sensor and drive coupling) on gear motor and gear reducer
  • Low- water sensor protection on refrigeration and gear motor system
  • Ice level thermostat for machine shut down
  • Stainless steel side panels in scotch-brite finish, rounded corners for enhanced ease of cleaning and aesthetics
  • Side panels are removable on all four sides to ease maintenance and after-sales service operations
  • ABS plastic top cover
  • Reduced height to ease installation
  • CFC Free R-404A Refrigerant
  • Optional UV lamp for bacterial control.
  • Optional Anti-scale, anti-algae water filtration system
  • Optional KICMAREXT0001 ice chute extension 90cm
  • Optional KICMARDOUBL02 double ice chute 65cm
  • Optional Infrared ice sensor
  • Optional ON/OFF/24h manual switch
  • Optional KITTIMERSET01 weekly timer
