The Wireless Sensor Receiver together with Eltek’s range of GenII telemetry transmitters enables users to integrate radio connected sensors with their existing data loggers or data acquisition systems with ease.
- Up to 16 sensors’ values (e.g. temperature, humidity, light, voltage or current) are presented as corresponding 0-5VDC or 4-20mA outputs on the WSR receiver, allowing quick, easy and accurate connection to existing data gathering systems.
- Uses standard license exempt frequencies
- Long distance assured – up to 1Km depending on installation
- Uses Eltek’s field proven and readily available series of GenII transmitters
- Ideal for permanent or temporary applications e.g.
- temperature mapping
- research projects
- difficult to wire environments
- Continue to use your preferred analysis software

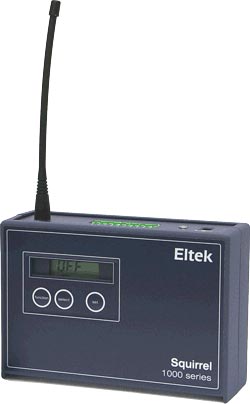

The WSR is a self-contained mains-powered receiver and output unit with built-in batteries providing 48 hours of operation in the event of a mains failure. An LCD is incorporated for real time metering of sensor values. The WSR is suitable for systems which accept 0-5VDC analogue inputs with slowly changing variables – typically measured every 10 seconds. Two models are available with either 8 or 16 inputs/outputs.
Most Eltek GenII transmitters can be used with the WSR (apart from event or pulse transmitters).
