Project Description

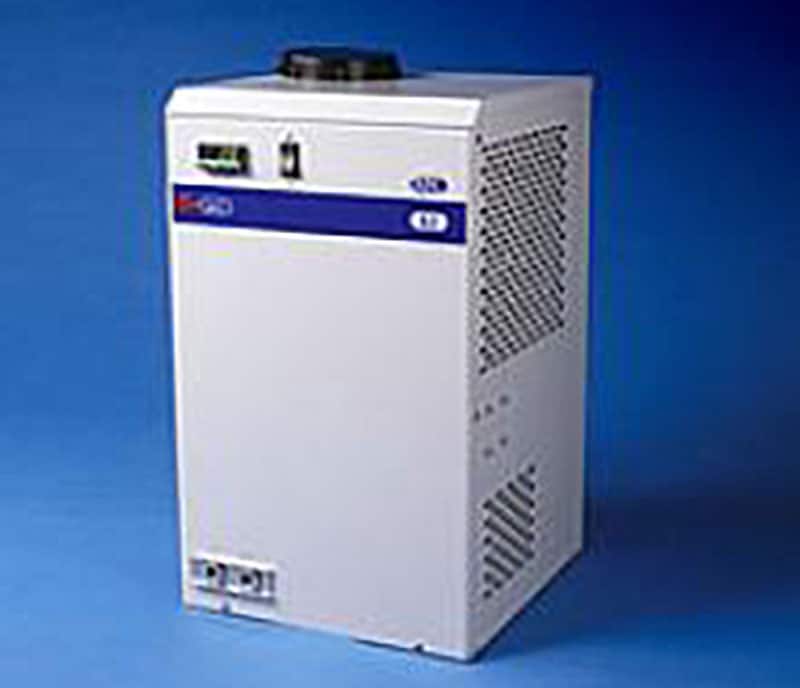

Compact self contained unit. Temperature display. Factory set temperature. 500 Watt cooling capacity.

If you need reliable cooling and wish to check the running temperature of the chiller this model is for you. High and Low temperature alarms are also included.

Key Aspects:

  • Dimensions L x W x H 330 x 315 x 515 mm
  • Cooling capacity (water @ 17°C) 480 watts
  • Fixed temperature operation, factory set at 10°C (20°C ambient)
  • Temperature stability: +/- 0.2°C (with a stable load)
  • Digital temperature display: Standard
  • Temperature alarm: Adjustable High / Low
  • Low fluid level alarm: Audio/ Visual
  • Auto diagnostic functions: Controller and sensor
  • System volume: 1.5 litres
  • Pressure control system Standard fitment internal – user adjustable
  • Compatible fluids: Hexid fluids / water / propylene glycol
  • Fluid connections: 10mm i.d. hose tails & 1/4″ BSP female
  • Compressor over – load protection: Standard
  • Emergency Off (EMO) Via main circuit breaker (MCB)
  • Tool-less access: No user serviceable parts
  • Noise level: 55 dB(A) @ 1 metre
  • Weight: 30Kg
  • Lockable castors for mobility: Optional
